Pre-Winter Checks? Sometimes It’s Already Too Late.
Winter is just around the corner, that magical time of year when we all start nervously checking our boilers. We tell ourselves to check them before the first cold snap hits. But let’s be honest—you can’t predict when a tiny component, like a thermistor, will decide to die.
I learned this the hard way. This isn’t just a repair guide; it’s a cautionary tale from a few years back when the first real cold spell hit, and our boiler promptly shut down. It’s the story of how I diagnosed the problem, and the ridiculous fight I had to wage just to buy a $5 part. If you’re checking your system now, here’s what I went through—it might save you a lot of trouble.
A Quick Detour: My “Special” Korean Heating System
First, you need to understand my setup, as it’s not common in many parts of the world (like North America).
- Ondol (Underfloor Heating): My home uses the traditional Korean heating system called “Ondol.” We don’t have air vents or radiators. Instead, hot water circulates through pipes under the entire floor. The floor itself becomes one giant, slow-radiating heater. It’s incredibly comfortable, but it also means if the boiler fails, your entire house becomes a block of ice. There’s no backup.
- Off-Peak Electric Boiler: My region doesn’t have a natural gas line yet (I’m still waiting…). So, I use an “Off-Peak Electric Boiler.” This is basically a giant, well-insulated water tank (storage tank) that heats up only at night using cheaper nighttime electricity. During the day, it circulates that stored hot water.
This system means two things: the boiler is absolutely critical, and if it’s broken, I can only test the repair at night when the power company allows it to turn on. This setup made my boiler failure a true nightmare.
The Crisis: An “E7” Error on the Coldest Day

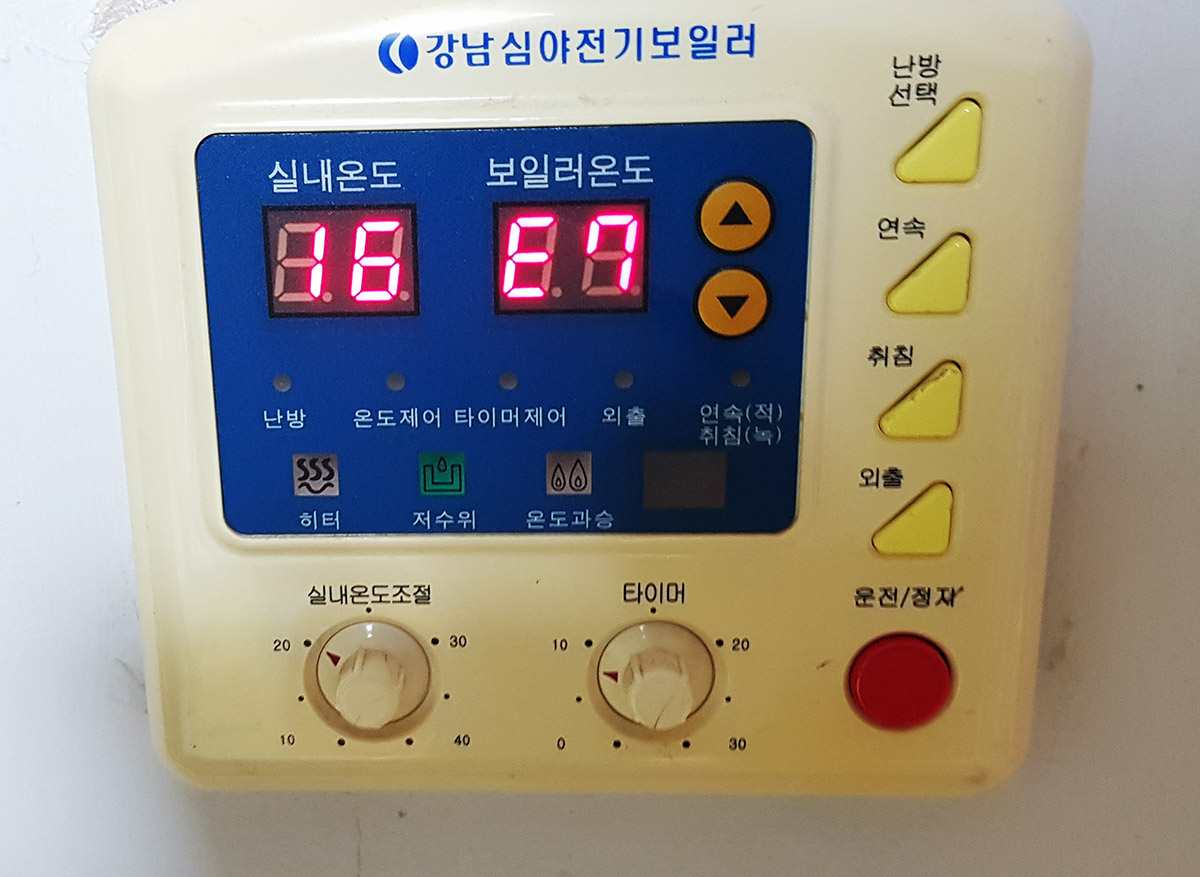

The crisis began when the room controller’s temperature reading started fluctuating wildly, then finally, this:
“Crap. On the coldest day of the year…”
As the self-proclaimed “clumsy technician” of the house, I was immediately summoned by my freezing family. I checked the manual.
⚠️ CRITICAL WARNING #1: ‘E7’ IS NOT A UNIVERSAL CODE! On my specific boiler model, “E7” indicated a “hot water sensor error.” On your boiler, “E7” could mean “flame failure” or “impending explosion.” The codes are NOT standardized across manufacturers. ALWAYS check YOUR boiler’s manual first.

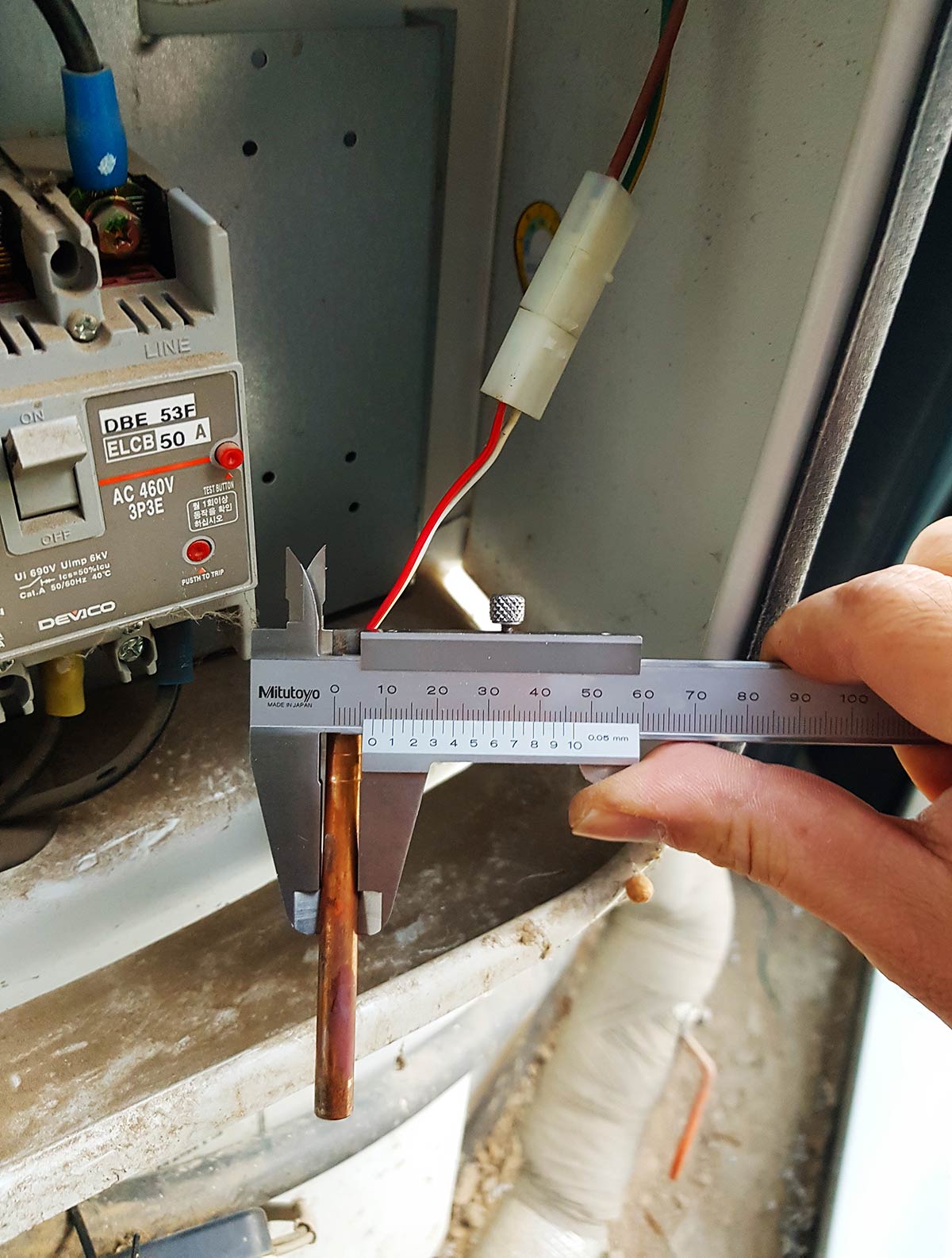

My “technician’s hunch,” based on the fluctuating temperatures before the error, strongly suggested the sensor (a thermistor) was the culprit. I pulled the old sensor out to check its specs.
The A-Grade Info: Diagnosing the Thermistor
Now, how to confirm? The broken sensor’s resistance was all over the place. I needed to figure out its original spec.
(Sorry, I was in a hurry and missed taking photos of this part.)
Here’s what I did:
- I disconnected the faulty sensor.
- I took a 20kΩ resistor from my parts bin and temporarily connected it to the sensor wires. The room controller displayed 45°C.
- I took two 20kΩ resistors in series (total 40kΩ). The controller displayed 30°C.

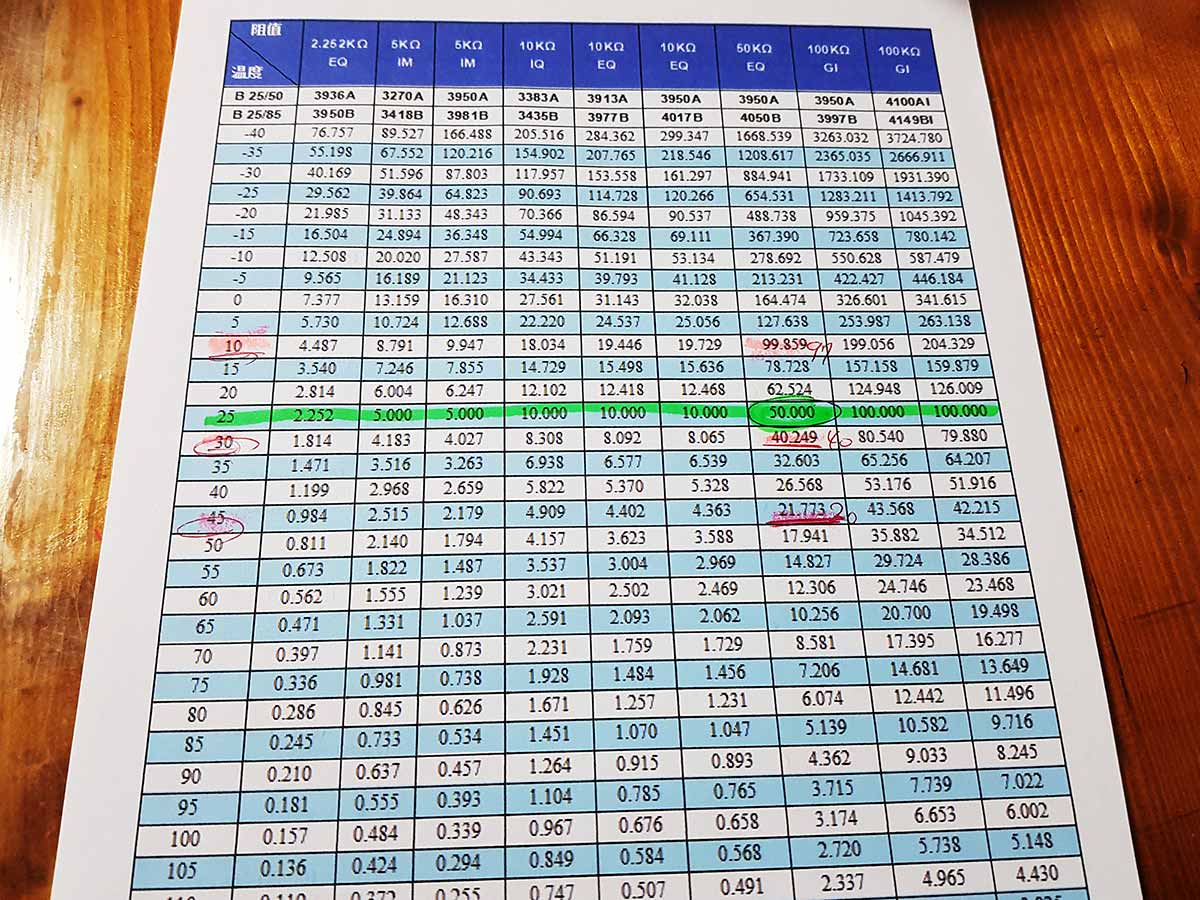

- I cross-referenced this with a generic NTC Thermistor temperature table I found online.
My test results (40kΩ ≈ 30°C, 20kΩ ≈ 45°C) lined up perfectly with the “NTC 50K” column on the chart. Diagnosis confirmed: I needed an NTC 50K Thermistor.
The Real Battle: The Fight for the Right to Repair
I had the diagnosis. Now I just needed the part. This should be the easy bit, right? Wrong.
This is where my simple repair turned into a multi-day saga.
- Call to Manufacturer HQ: “Sorry, we don’t sell parts directly to consumers. Call your local dealer.”
- Call to Local Dealer #1: “We don’t sell parts, sir. We only do service calls (for a fee).”
- Call to Dealer #2, #3…: Same story. “We will not sell you the part.”
I was furious. It was freezing, I knew exactly what part I needed, and the company’s own partners were holding it hostage, forcing me to pay for an expensive service call for a $5 part.
Finally, after calling HQ again and explaining the situation, a different employee gave me the most absurd advice: “Oh, just search ‘electric boiler sensor’ on the internet. The ones sold there are identical to ours. Just buy one of those.”
I was speechless. But he was right. I found one, paid for overnight shipping, and spent another day shivering.
The Fix: Replacing the Sensor
⚠️ CRITICAL WARNING #2: HIGH VOLTAGE + HOT WATER = LETHAL. This is NOT a tutorial. This is a log of what I did. This machine contains lethal high voltage electricity and scalding, pressurized hot water. DO NOT attempt this unless you are a qualified professional and have shut off ALL power breakers to the boiler.

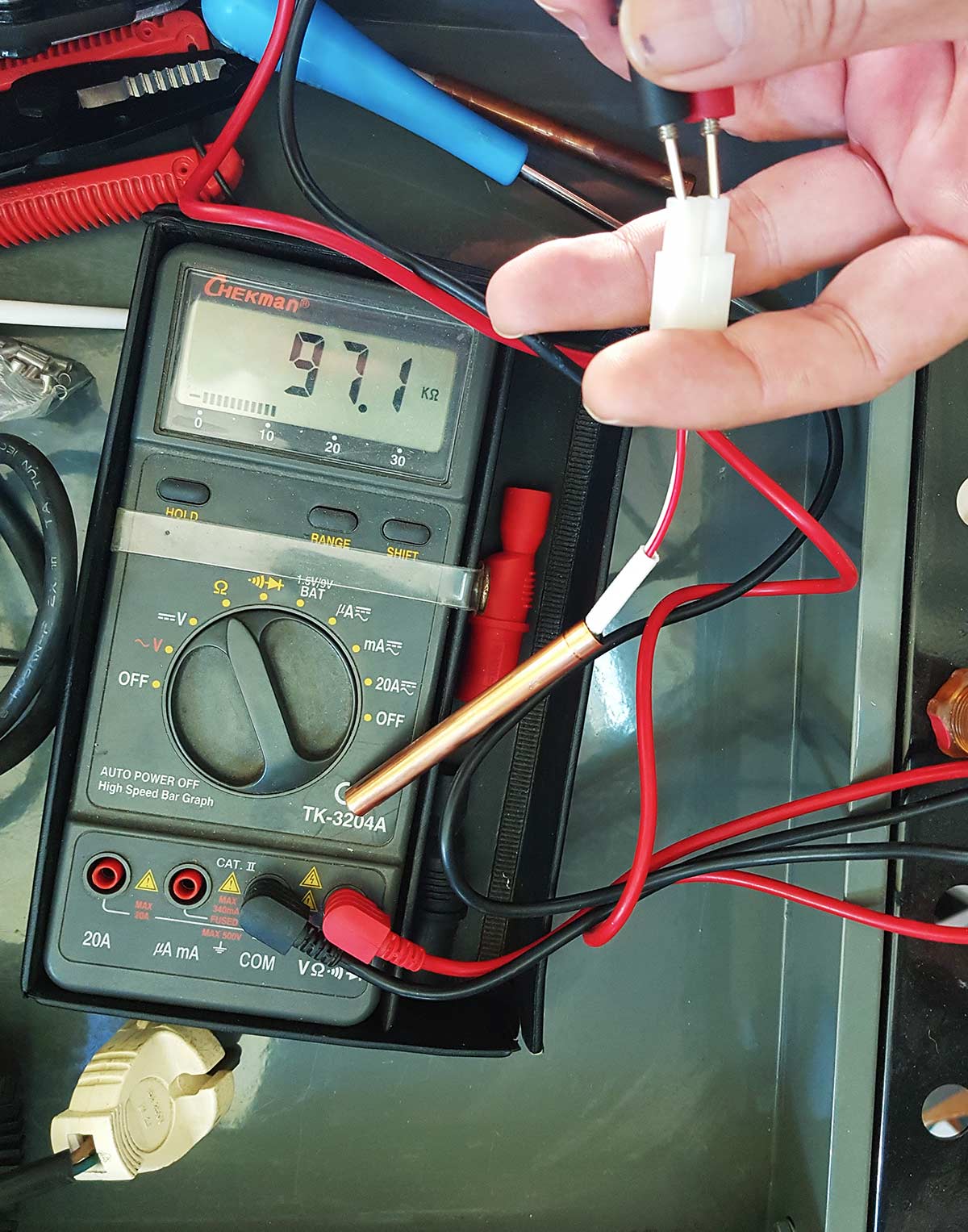

The part arrived the next morning. The first thing I did was test it. The ambient temperature was about 10°C (50°F), and my multimeter read ~97kΩ. This confirmed it was, indeed, the NTC 50K thermistor I was looking for.

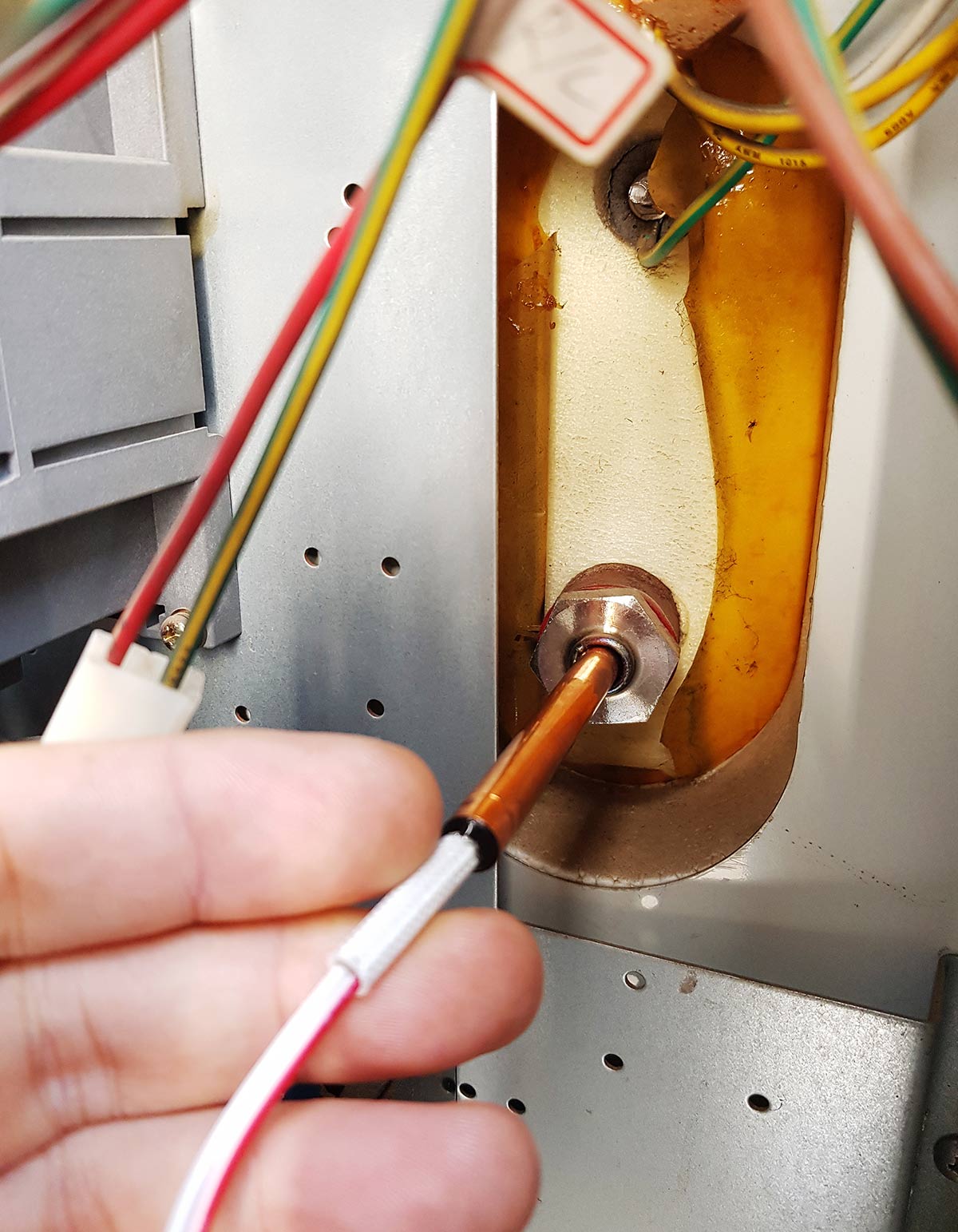

With the part confirmed, I shut off all power breakers to the boiler and got to work. The old sensor was removed and the new one was installed. This type of sensor isn’t screwed in; it just slides into a dedicated dry well (a metal tube) so it can read the temperature without touching the water.

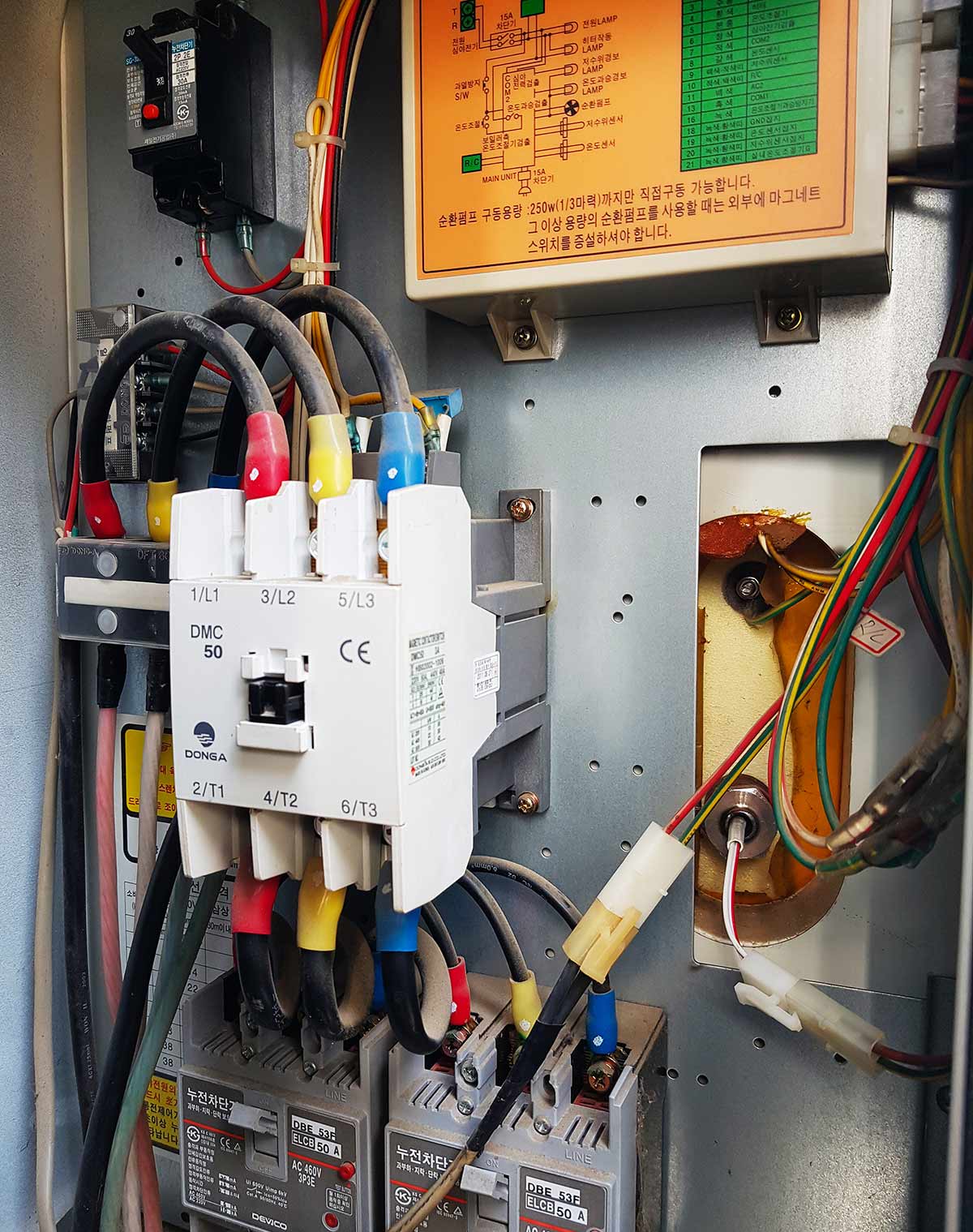

Then, just plug in the connector. Here’s the final installed view.
The connector was an exact match. It was, as the company employee had said, the exact same part.
The Long Wait for Night… and Success
The sensor was in. But because this is an off-peak boiler, I couldn’t find out if it worked until 10 PM when the system was allowed to draw power. We spent another day huddled around space heaters.

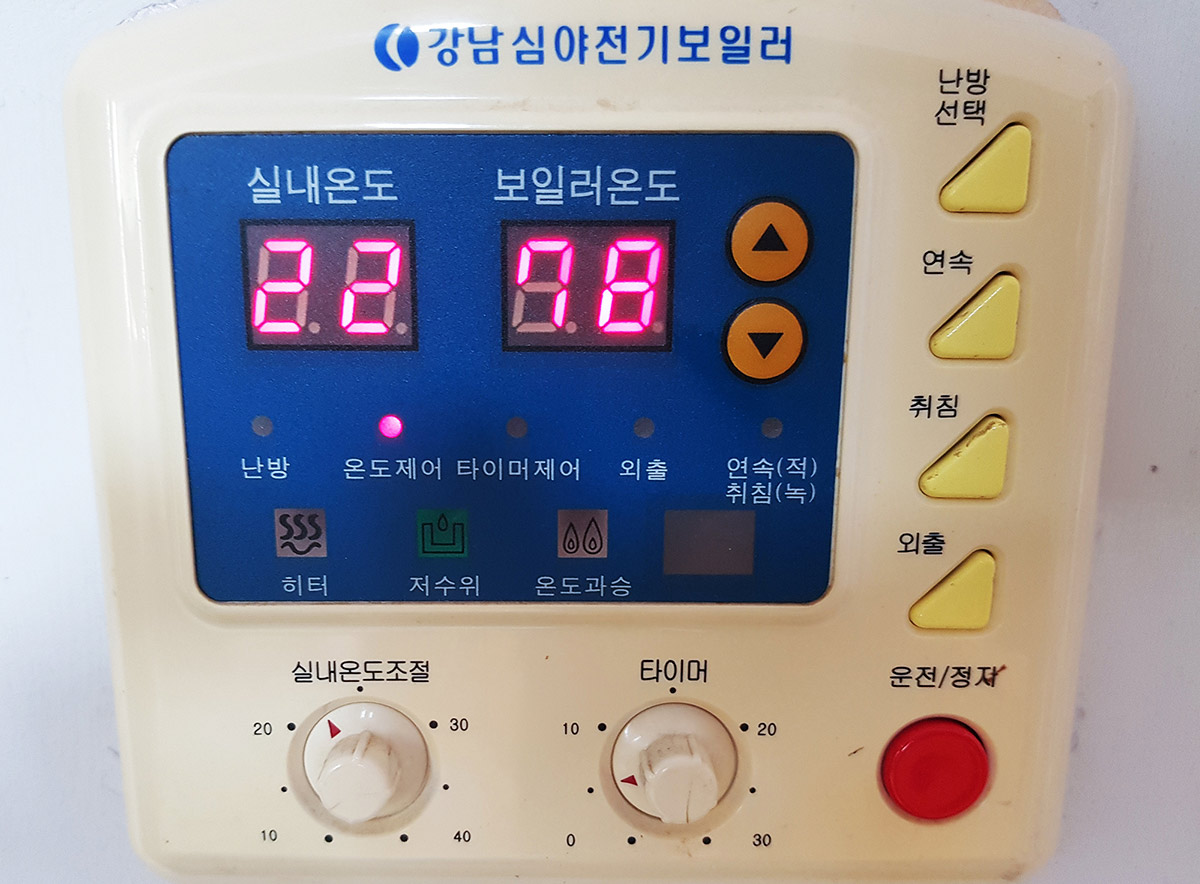

Finally, nighttime came. The boiler clicked on. And the next morning…
Success. The house was warm. I had won. But what a ridiculous fight.
The Takeaway: Know Your Rights (and Your Thermistors)
This “repair” wasn’t difficult, but it was frustrating. It’s a perfect example of why the “Right to Repair” matters. This post is for anyone who might face a similar problem. Hopefully, my story helps you diagnose your issue (especially if it’s an NTC 50K thermistor) or, at the very least, skip the dealer run-around and go straight to the online parts store.
…Now, if only that natural gas line would finally get here.
